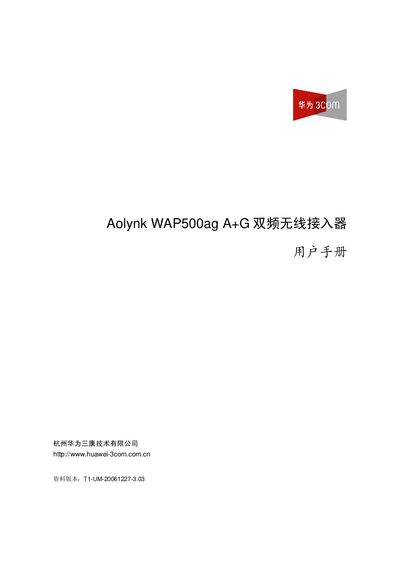

User manual for the Huawei WAP500ag A+G dual‑band wireless access point, covering installation, configuration and technical specifications.
The Huawei WAP500ag A+G is a dual‑band wireless access point designed for small‑business and home networks. It provides one Ethernet uplink and two wireless radios supporting 802.11a/b/g standards, with features such as WPA/WPA2 security, web‑based management and DFS/TPC.
This manual includes product introduction, safety guidelines, installation steps, detailed configuration instructions, TCP/IP setup, technical specifications, and basic wireless networking principles to help users deploy and maintain the device effectively. This manual is written in Chinese.
| Supported wireless standards | IEEE 802.11a / 802.11b / 802.11g |
|---|---|
| Wireless data rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 108 Mbps |
| Ethernet interface speed | 10/100 Mbps |
| Power supply | 12 V DC, 1 A (or PoE IEEE 802.3af) |
| Dimensions (L×W×H) | 177 mm × 103 mm × 33 mm |
| Weight | 260 g |
| Operating temperature | 0 °C – 40 °C |
| Antennas | 2 dual‑band omnidirectional antennas |
The default maintenance IP address is 192.168.1.100.
