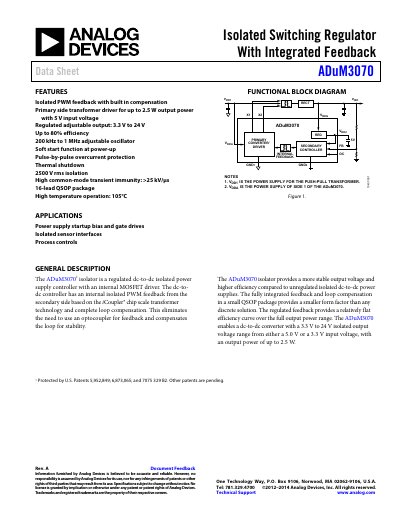

This datasheet details the ADuM3070, an isolated DC-to-DC power supply controller with integrated feedback and MOSFET driver for up to 2.5 W output.
The ADuM3070 is an isolated DC-to-DC power supply controller featuring an internal MOSFET driver and isolated PWM feedback based on iCoupler technology. It eliminates the need for external optocouplers and provides complete loop compensation for stable output voltage and high efficiency. The device supports regulated adjustable output voltages ranging from 3.3 V to 24 V with up to 80% efficiency.
| Maximum Output Power | 2.5 W |
|---|---|
| Output Voltage Range | 3.3 V to 24 V |
| Efficiency | Up to 80% |
| Switching Frequency Range | 200 kHz to 1 MHz |
| Isolation Voltage | 2500 V rms |
| Common-Mode Transient Immunity | >25 kV/µs |
| Package Type | 16-lead QSOP |
| Operating Temperature | 105°C |
The ADuM3070 is designed for a primary side transformer driver supporting up to 2.5 W output power.
No, it uses internal isolated PWM feedback based on iCoupler technology, eliminating the need for an optocoupler.
The device provides a regulated adjustable output voltage ranging from 3.3 V to 24 V.
