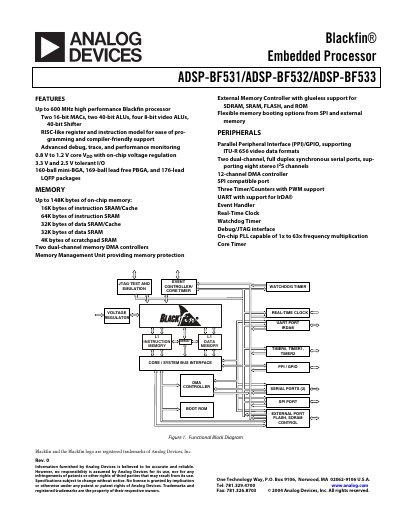

Analog Devices ADSP-BF531/ADSP-BF532/ADSP-BF533 Blackfin Processor Datasheet

About this manual

The ADSP-BF531/2/3 processors are members of the Blackfin family, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). These system-on-a-chip solutions combine a dual-MAC signal processing engine with an orthogonal RISC-like instruction set and SIMD multimedia capabilities. They are designed for next-generation digital communication and consumer multimedia applications.

What's inside

• General Description
• Portable Low Power Architecture
• System Integration
• Processor Peripherals
• Blackfin Processor Core
• Memory Architecture
• DMA Controllers
• Real-Time Clock
• Watchdog Timer
• Timers

Specifications

Frequently asked questions

What voltage range does the on-chip regulator support?

The on-chip voltage regulator supports a core voltage range from 0.8 V to 1.2 V.

Does the processor include an interrupt controller?

Yes, the ADSP-BF531/2/3 processor contains an interrupt controller for flexible management of interrupts.
