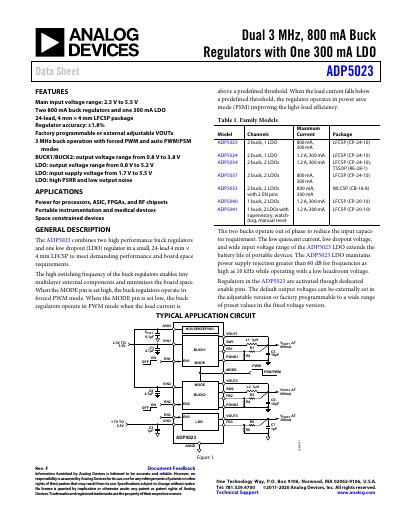

This datasheet details the Analog Devices ADP5023, a dual 800 mA buck regulator with one 300 mA LDO in an LFCSP package.
The ADP5023 is a power management integrated circuit (PMIC) that combines two high-performance buck regulators and one low dropout (LDO) regulator. Designed for space-constrained applications, it features a small 24-lead 4 mm × 4 mm LFCSP package. The device supports an input voltage range of 2.3 V to 5.5 V for the buck regulators and 1.7 V to 5.5 V for the LDO.
| Buck Regulator Output Current | 800 mA |
|---|---|
| LDO Output Current | 300 mA |
| Buck Input Voltage Range | 2.3 V to 5.5 V |
| LDO Input Voltage Range | 1.7 V to 5.5 V |
| Switching Frequency | 3 MHz |
| Output Voltage Accuracy (Buck) | ±1.8% |
| Package Type | 24-lead LFCSP |
The output voltage range for BUCK1 and BUCK2 is from 0.8 V to 3.8 V.
The LDO output voltage range is from 0.8 V to 5.2 V.
The minimum input and output capacitor ratings are 4.7 µF and 10 µF respectively, with a maximum of 40 µF.
