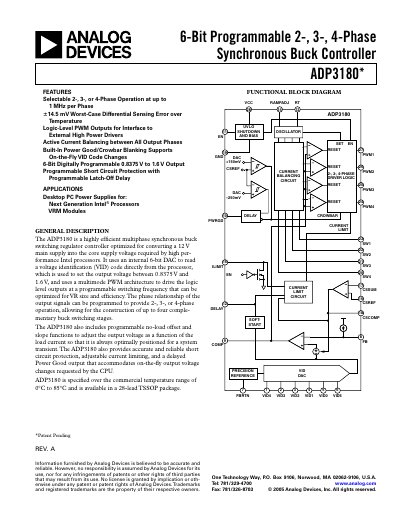

This datasheet describes the ADP3180, a multiphase synchronous buck switching regulator controller for Intel processors with programmable output voltage and…
The ADP3180 is a highly efficient multiphase synchronous buck switching regulator controller optimized for converting a 12 V main supply into the core supply voltage required by high performance Intel processors. It uses an internal 6-bit DAC to read a voltage identification (VID) code directly from the processor, which is used to set the output voltage between 0.8375 V and 1.6 V.
The device uses a multimode PWM architecture to drive logic level outputs at a programmable switching frequency. It supports selectable 2-, 3-, or 4-phase operation, allowing for the construction of up to four complementary buck switching stages. The ADP3180 also includes programmable no-load offset and slope functions, accurate short circuit protection, and a delayed Power Good output.
| Output Voltage Range | 0.8375 V to 1.6 V |
|---|---|
| Operating Temperature Range | 0°C to 85°C |
| Package Type | 28-lead TSSOP |
| Switching Frequency | up to 1 MHz per Phase |
| Input Voltage Range | 10 V to 14 V |
The output voltage is programmable between 0.8375 V and 1.6 V using an internal 6-bit DAC.
The device supports selectable 2-, 3-, or 4-phase operation.
The controller supports operation at up to 1 MHz per phase.
