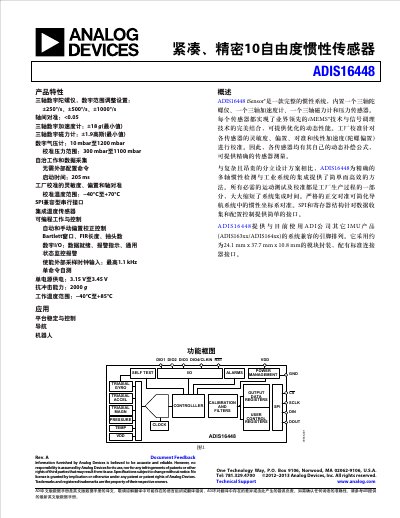

This datasheet describes the ADIS16448, a complete inertial system integrating triaxial gyroscope, accelerometer, magnetometer, and pressure sensor with…
The ADIS16448 iSensor is a compact, precise 10-degree-of-freedom inertial sensor module. It integrates a triaxial digital gyro, triaxial digital accelerometer, triaxial digital magnetometer, and digital barometric pressure sensor into a single package using advanced i MEMS technology.
The device features factory calibration for sensitivity, bias, alignment, and linear acceleration, providing optimized dynamic performance without the need for complex external configuration. It offers an SPI-compatible serial interface and operates on a single power supply ranging from 3.15 V to 3.45 V. This manual is written in Chinese.
| Dynamic Range (Gyro) | ±1000 ±1200 deg/sec |
|---|---|
| Dynamic Range (Accelerometer) | ±18 g |
| Dynamic Range (Magnetometer) | ±1.9 gauss |
| Pressure Range | 10 mbar to 1200 mbar |
| Power Supply Voltage | 3.15 V to 3.45 V |
| Operating Temperature Range | -40°C to +85°C |
| Shock Resistance | 2000 g |
| Startup Time | 205 ms |
It integrates a triaxial gyroscope, triaxial accelerometer, triaxial magnetometer, and pressure sensor.
No, it operates autonomously without the need for external configuration commands.
The device provides an SPI-compatible serial interface.
