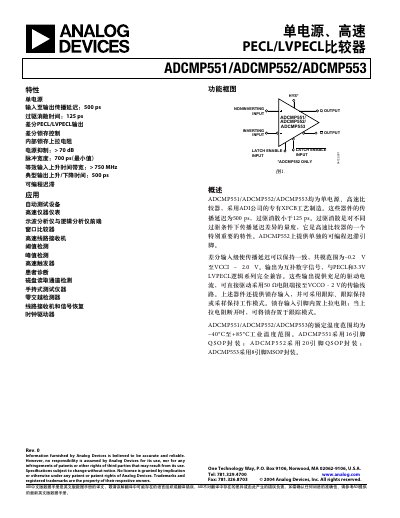

This datasheet details the specifications, pin configurations, and application information for the Analog Devices ADCMP551, ADCMP552, and ADCMP553…
The ADCMP551/ADCMP552/ADCMP553 are single-supply, high-speed comparators manufactured using Analog Devices' proprietary XFCB process. These devices feature a propagation delay of 500 ps and an overdrive dissipation time of less than 125 ps. They offer differential PECL/LVPECL outputs compatible with 3.3V logic levels and include latching inputs for tracking, tracking-hold, or sample-hold operation modes.
| Propagation Delay | 500 ps |
|---|---|
| Overdrive Dissipation Time | 125 ps |
| Equivalent Input Rise Time Bandwidth | > 750 MHz |
| Operating Temperature Range | -40°C to +85°C |
| Package Types | 16-pin QSOP, 20-pin QSOP, 8-pin MSOP |
| Input Common Mode Range | -0.2 V to VCCI - 2.0 V |
The propagation delay is 500 ps.
The outputs are fully compatible with PECL and 3.3V LVPECL logic families.
They are available in 16-pin QSOP, 20-pin QSOP, and 8-pin MSOP packages.
