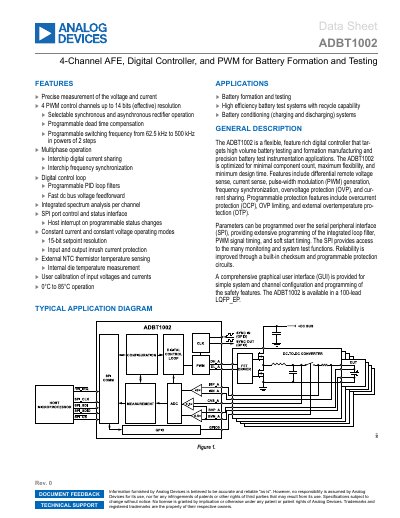

This datasheet details the Analog Devices ADBT1002, a flexible digital controller for battery formation and testing featuring precise voltage/current…
The ADBT1002 is a feature-rich digital controller optimized for high-volume battery testing, formation manufacturing, and precision test instrumentation. It integrates an analog front end with differential remote voltage sense, current sense, pulse-width modulation (PWM) generation, frequency synchronization, overvoltage protection, and interchip digital current sharing.
Parameters are programmable via a Serial Peripheral Interface (SPI), allowing extensive configuration of integrated loop filters, PWM timing, and soft-start functions. The device supports constant current and constant voltage operating modes with 15-bit setpoint resolution and includes comprehensive monitoring and system test capabilities.
| Number of PWM Control Channels | 4 |
|---|---|
| PWM Resolution | up to 14 bits (effective) |
| Switching Frequency Range | 62.5 kHz to 500 kHz |
| Current Sense Channel Gain | 40 V/V |
| Voltage Sense and Capacitor Voltage Sense Channel Gain | 0.5 V/V |
| Internal Voltage Reference Range | 2.495 V to 2.505 V |
| Internal Oscillator Frequency | 16 MHz |
| Package Type | 100-lead LQFP_EP |
The device targets high volume battery testing and formation manufacturing, as well as precision battery test instrumentation applications.
Parameters can be programmed over the serial peripheral interface (SPI), providing extensive programming of the integrated loop filter, PWM signal timing, and soft start timing.
The device operates in a temperature range from 0°C to 85°C.
