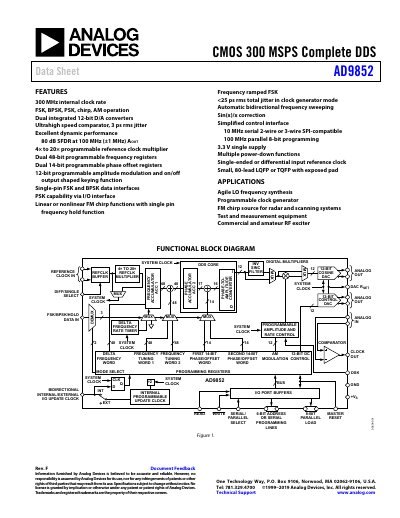

This datasheet details the AD9852 digital synthesizer, a highly integrated DDS device with internal D/A converters for generating stable, programmable…
The AD9852 is a highly integrated digital synthesizer that uses advanced Direct Digital Synthesis (DDS) technology coupled with an internal high-speed, high-performance D/A converter. It generates a highly stable frequency-, phase-, and amplitude-programmable cosine output suitable for use as an agile local oscillator (LO) in communications, radar, and test and measurement equipment. The device features a 48-bit frequency resolution and can generate output signals at frequencies up to 150 MHz.
| Internal System Clock Frequency Range (Multiplier Enabled) | 20 to 300 MHz |
|---|---|
| External Reference Clock Frequency Range (Multiplier Enabled) | 5 to 75 MHz |
| DAC Resolution | 12 Bits |
| Output Update Speed | 300 MSPS |
| Full-Scale Output Current | 5 to 20 mA |
| Wideband SFDR (1 MHz to 20 MHz) | 58 dBc |
| Narrow-Band SFDR (10 MHz A OUT ±1 MHz) | 83 dBc |
| Operating Temperature Range | -40°C to +85°C |
The device provides 48-bit frequency resolution, achieving 1 μHz tuning resolution with a 300 MHz SYSCLK.
The circuit architecture allows the generation of output signals at frequencies up to 150 MHz.
Yes, it includes a programmable 4× to 20× REFCLK multiplier circuit to generate the 300 MHz system clock.
