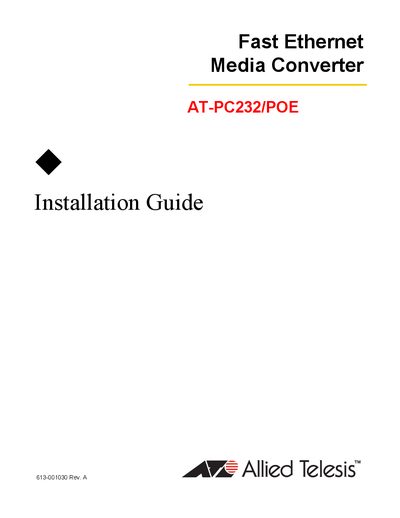

Installation guide for the Allied Telesis AT-PC232/POE Fast Ethernet Media Converter, covering setup, cabling, and troubleshooting.
This document serves as the installation guide for the Allied Telesis AT-PC232/POE Fast Ethernet Media Converter. It provides instructions for verifying package contents, planning the installation site, and performing both desktop and wall-mount installations. The guide details how to cable the 10/100Base-TX twisted pair port and the 100Base-FX fiber optic ports, including specific procedures for connecting SC connectors and RJ-45 cables.
| Dimensions | 15.5 cm x 13.1 cm x 4.0 cm |
|---|---|
| Weight | .748 Kg (1.65 lb.) |
| Operating Temperature | 0° C to 40° C |
| AC Input Supply | 100-240 VAC, 1.0 A maximum |
| Power Consumption | 25 Watts maximum |
| PoE Power | 15.4 Watts Maximum |
The maximum operating altitude is 3,048 m (10,000 ft).
The maximum non-operating altitude is 4,000 m (13,100 ft).
The operating humidity range is 5% to 90% noncondensing.
