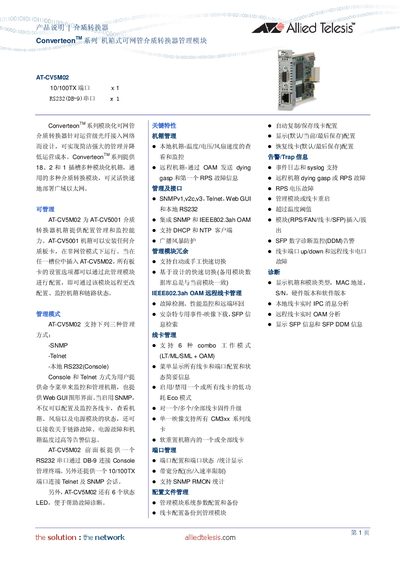

The Allied Telesis AT-CV5M02 is a management module for Converteon series media converters, offering SNMP, Telnet, RS232, and monitoring features.
The AT-CV5M02 module provides centralized configuration and monitoring for Converteon series chassis media converters. It supports three management methods—SNMP, Telnet/Web GUI, and local RS232 console—and includes status LEDs, alarm reporting, and OAM functions for carrier‑grade networks.
Technical specifications include a 10/100TX Ethernet port, DB‑9 RS232 console, dual‑voltage power inputs (5 VDC/3.3 VDC), up to 9.6 W power consumption, 32 MB DRAM, 8 MB flash, and environmental ratings for temperature, humidity, and altitude. The module also offers redundancy, DHCP/NTP client support, and broadcast storm protection. This manual is written in Chinese.
| RS232 connector | DB‑9 male |
|---|---|
| Baud rate | 1200~115200 bps |
| Ethernet port | 10/100TX auto MDI/MDI‑X |
| Power input voltage | 5 VDC, 3.3 VDC |
| Maximum current | 1.15 A (5 V), 0.86 A (3.3 V) |
| Maximum power | 9.6 W |
| DRAM | 32 MB |
| Flash memory | 8 MB |
| Operating temperature | 0 °C ~ 40 °C |
| Storage temperature | -25 °C ~ 70 °C |
| Operating humidity | 5 % ~ 90 % non‑condensing |
| Storage humidity | 5 % ~ 95 % non‑condensing |
| Maximum altitude | 3048 m |
| Physical dimensions | 7.3 cm × 2.2 cm × 13 cm (W × H × L) |
| Weight | 0.27 kg |
It supports SNMP, Telnet/Web GUI, and a local RS232 console for configuration and monitoring.
The module provides six status LEDs for fault diagnosis and link status.
The module’s maximum power consumption is 9.6 W.
It measures 7.3 cm wide, 2.2 cm high, and 13 cm long.
