The Aimtec AM1S-Z series is a 1 W DC‑DC converter with multiple input/output options, up to 3000 V isolation and high efficiency.

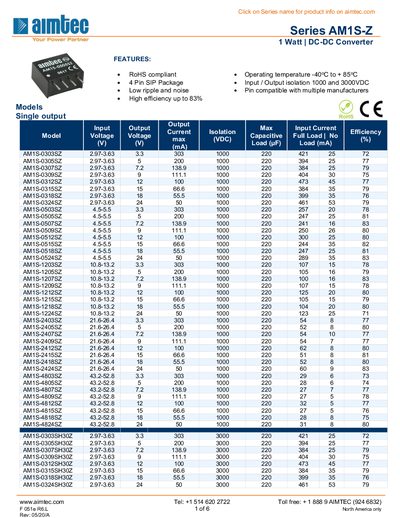

The AM1S-Z series from Aimtec provides 1 W isolated DC‑DC conversion in a compact SIP package. Models cover input ranges from 2.97 V to 48 V and output voltages from 3.3 V to 24 V, with isolation ratings of 1000 VDC or 3000 VDC for high‑voltage versions.
Key specifications include up to 83 % efficiency, operating temperature from –40 °C to +85 °C, switching frequency around 80 kHz, and a lightweight plastic housing (≈1.5 g). The datasheet also lists recommended EMI filtering components and safety compliance (CE, IEC standards).
| Isolation voltage | 1000 VDC (standard) / 3000 VDC (SH30) |
|---|---|
| Efficiency | up to 83 % |
| Operating temperature | -40 °C to +85 °C |
| Weight | 1.5 g (standard), 1.9 g (48 V models) |
The standard models have 1000 VDC isolation, while the SH30 versions offer 3000 VDC isolation.
Efficiency can reach up to 83 % depending on the specific model and load conditions.
The device operates from –40 °C to +85 °C.
