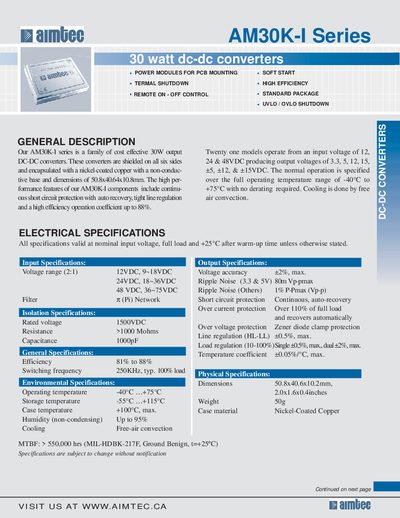

AM30K-I Series is a family of cost effective 30W output DC-DC converters from AIMTEC company. It has 21 models with input voltage range of 12V, 24V and 48VDC and output voltage range of 3.3V, 5V, 12V, 15V, ±5V, ±12V and ±15V. AM30K-I series has the features of high efficiency, short circuit protection, thermal shutdown, remote on-off control, soft start.
The AIMTEC AM30K-I Series is a family of cost-effective 30W output DC-DC converters designed for PCB mounting. These units are shielded on all six sides, encapsulated with nickel-coated copper, and operate efficiently up to 88% under full load conditions.
| Power Output | 30W output |
|---|---|
| Efficiency | 81% to 88% |
| Operating Temperature | -40°C to +75°C |
| Cooling Method | Free-air convection |
| Dimensions | 50.8x40.6x10.2mm |
| Case Material | Nickel-Coated Copper |
The series supports three input voltage ranges: 12VDC (9~18VDC), 24VDC (18~36VDC), and 48 VDC (36~75VDC).
Yes, it features continuous short circuit protection with auto recovery.
