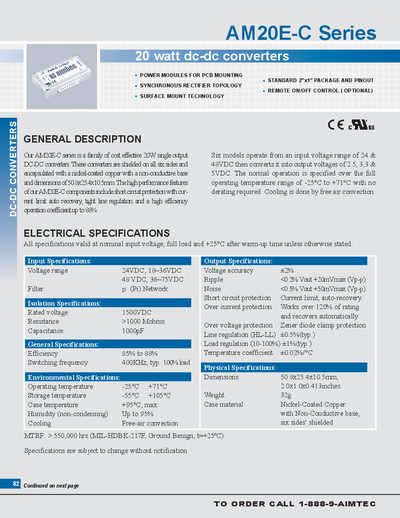

The AM20E-C series is a family of cost effective 20W single output DC-DC converters, featuring short circuit protection, line regulation, and high efficiency.
The AIMTEC AM20E-C Series is a family of cost-effective, single-output DC-DC converters designed for PCB mounting. These units utilize a synchronous rectifier topology and surface mount technology (SMT) to provide efficient power conversion in a compact 2"x1" package with dimensions of 50.8x25.4x10.5mm.
The series offers six specific models operating from input voltages of either 24VDC or 48VDC, converting them into output voltages of 2.5V, 3.3V, or 5V. Key features include short circuit protection with auto-recovery, tight line regulation, and high efficiency operation reaching up to 88%. The converters are shielded on all six sides with nickel-coated copper and operate over a temperature range of -25°C to +71°C.
| Output Power | 20W |
|---|---|
| Topology | Synchronous Rectifier |
| Package Dimensions | 50.8x25.4x10.5mm (2"x1") |
| Efficiency | 85% to 88% |
| Switching Frequency | 400KHz (typical) |
| Isolation Voltage | 1500VDC |
This specific model converts input voltage into a 2.5VDC output at 5000mA.
Cooling is done by free air convection.
