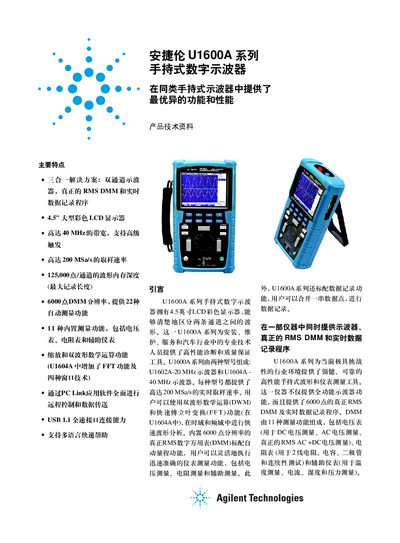

The Agilent U1600A series handheld digital oscilloscope features a 4.5-inch LCD color display, providing high-performance diagnostic and quality assurance tools. It offers a three-in-one solution with dual-channel oscilloscope, true RMS DMM, and real-time data logging program. It has high bandwidth, high sampling rate, and large memory depth, supporting various measurement functions and mathematical operations.
The U1600A series handheld digital oscilloscope combines a 4.5‑inch color LCD, a true RMS 6000‑point DMM, and real‑time data‑recording in a single portable instrument. It offers two models—U1602A (20 MHz bandwidth) and U1604A (40 MHz bandwidth)—both with up to 200 MSa/s sampling rate, 125 kb per channel memory depth, and extensive measurement functions.
The manual covers basic operation, waveform analysis (including dual‑waveform math and FFT on the U1604A), advanced triggering, DMM modes, data‑recording, and connectivity via USB 1.1 with PC Link software. Physical specifications, battery life, and safety information are also provided. This manual is written in Chinese.
| Bandwidth (U1602A) | 20 MHz |
|---|---|
| Bandwidth (U1604A) | 40 MHz |
| Maximum real‑time sampling rate | 200 MSa/s |
| Memory depth per channel | 125 kb |
| Display | 4.5‑inch color LCD (320 × 240) |
| DMM resolution | 6000 points (true RMS) |
| Input voltage rating (CAT III) | 300 Vrms |
| Battery | Ni‑MH 7.2 V, 4500 mAh, 4 h runtime |
The U1604A model has a 40 MHz bandwidth.
Yes, FFT functionality is provided only on the U1604A model.
Both models in the U1600A series support up to 200 MSa/s real‑time sampling.
The instrument provides up to 22 automatic measurement functions.
