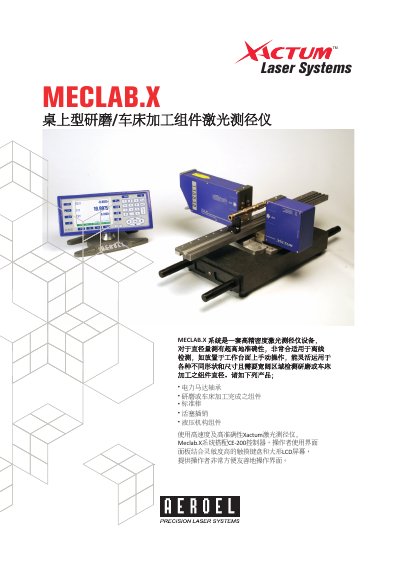

This document describes the Aeroel MECLAB.X laser diameter measurement system, featuring XLS40 and XLS80 sensors with CE-200 controllers for offline…
The MECLAB.X system is a high-precision laser diameter measurement device designed for offline detection. It utilizes the intelligent Xactum laser sensor (XLS40 or XLS80) combined with the CE-200 controller to provide a user-friendly interface via a large LCD screen and touch-sensitive keyboard. The system is suitable for measuring various shapes and sizes of components, such as motor bearings, pistons, and hydraulic parts, in grinding or lathe machining environments. This manual is written in Chinese.
| Measuring Area (XLS40) | 40 mm |
|---|---|
| Measurable Diameter Range (XLS40) | 0.06 - 38 mm |
| Core Linear Accuracy (XLS40) | ± 0.5 μm |
| Scan Frequency | 1500 Hz |
Yes, the system is capable of easily measuring transparent products.
