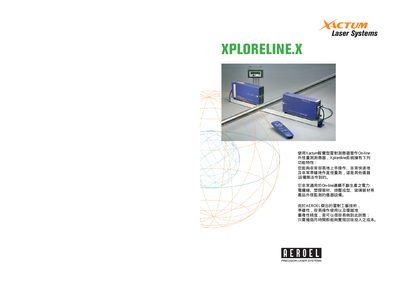

The Aeroel DM-100 manual explains the multi‑colour LED display, remote control, connections and operation for Xactum laser micrometer systems.
The DM-100 is a display and alarms module for Aeroel Xactum laser micrometers. It features a six‑digit multicolour LED main display, a two‑digit sub‑display, six status warning lights and protected PNP outputs. The module can be powered from a 24 VDC source and includes an optional analog output.
The unit is operated via an infrared remote control that also provides Ethernet and RS‑232 interfaces for PC communication. Optional GageXcom software enables Excel‑based data acquisition and system programming. The manual covers technical specifications, measurement examples, programming instructions and system composition for the XLS40, XLS80 and XLS150 gauges.
| Main display | 6‑digit, 7‑segment multicolour LED |
|---|---|
| Sub display | 2‑digit LED |
| Warning lights | 6 |
| Outputs | 4 protected PNP, Imax 100 mA |
| Inputs | 2 PNP, Ityp 15 mA |
| Analog output | Optional ±10 V |
| Dimensions | 97 × 49 × 158 mm |
| Weight | 0.5 kg |
| Power supply (display) | 24 VDC, 150 mA |
| Remote control size | 198 × 59 × 25 mm |
| Remote control weight | 91 g (without batteries) |
| Remote control power | 4 AAA 1.5 V batteries |
It requires a 24 VDC supply drawing 150 mA.
The module includes six warning lights for input and output status.
The remote control is powered by four AAA 1.5 V batteries.
