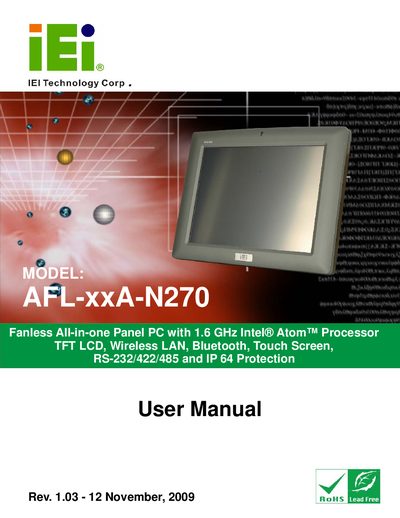

AFOLUX AFL-xxA-N270 Series Panel PC User Manual

This manual introduces the features and characteristics of the AFL-xxA-N270 series flat panel PC, including the 1.6GHz Intel® Atom™ processor, TFT LCD, wireless LAN, Bluetooth, touch screen, RS-232/422/485, and IP 64 protection.

Brand: iEi
Category: Other
Document type: User Manual
Language: English
Pages: 171
File format: PDF
File size: 8.6 MB
Published: 11 November, 2011
Updated: 30 September, 2023
MD5 checksum: 158A475EDDE48208F28CB3951C261C90
PDF: AFOLUX AFL-xxA-N270 Series Panel PC User Manual PDF

About this manual

This manual covers the AFOLUX AFL-xxA‑N270 series flat‑panel PCs, which feature a 1.6 GHz Intel® Atom™ N270 processor, fanless design, and optional touch screen. It includes detailed sections on hardware overview, system specifications, installation steps, BIOS configuration, and software driver installation.

The document also lists the packing contents, safety precautions, mounting options, and maintenance procedures, making it a comprehensive guide for installers and end‑users alike.

What's inside

Introduction
External Overview
Internal Overview
System Specifications
Detailed Specifications
Installation
Maintenance
BIOS Setup
Software Drivers

Specifications

LCD Size	7", 8.4", 10.4", 12.1"
Processor	1.6 GHz Intel® Atom™ N270
Memory (pre‑installed)	1 GB 533 MHz DDR2 SDRAM
SBC Model	AFLMB-945GSE
Construction Material	ABS + PC plastic front frame

Frequently asked questions

Which processor is used in the AFL‑xxA‑N270 series?

All models use a 1.6 GHz Intel® Atom™ N270 processor.

How can the system be mounted on a wall?

The manual provides a wall‑mounting bracket and step‑by‑step instructions in the "Wall Mounting" section (page 44).

What is the maximum brightness of the 7‑inch display?

The 7‑inch LCD has a brightness of 350 cd/m².

Download PDF (8.6 MB)
