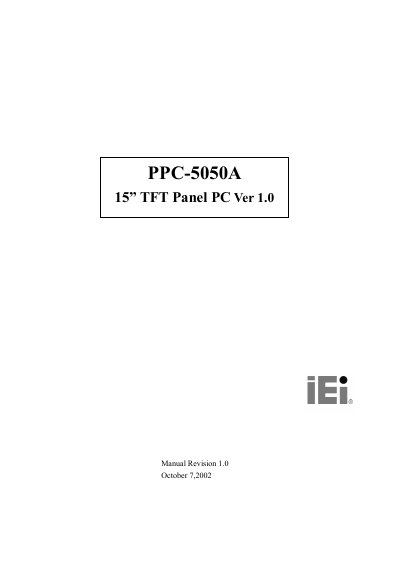

PPC-5050A 15” TFT Panel PC Ver 1.0 manual
The PPC-5050A is a 15‑inch TFT panel PC designed for industrial environments. It combines a flat‑panel LCD, POS‑566/370 CPU board, and a compact power supply to provide a small‑footprint, IBM‑compatible computer.
The manual covers product features, mechanical dimensions, system setup, mounting options, and detailed specifications for the display, power supply, and optional touch screen. Appendices provide exploded diagrams, OSD feature descriptions, display interface details, and touch‑panel controller information. This manual is written in Chinese.
| Display size | 15" TFT LCD |
|---|---|
| Resolution | 1024 x 768 |
| Brightness | 250 cd/m² |
| Front panel dimensions | 410 mm x 309 mm x 9 mm (W x H x D) |
| Cabinet dimensions | 383.6 mm x 282.6 mm x 97.6 mm (W x H x D) |
| Operating temperature | 0 °C to 50 °C |
| Power supply model | ACE‑916AP series |
An optional Dynapro analog resistive touch screen is available.
The front panel measures 410 mm × 309 mm × 9 mm (W × H × D).
