iMac is an all-in-one desktop computer from Apple Inc. The new iMac features a 20-inch widescreen display, a 1.25GHz PowerPC G4 processor, Velocity Engine, 333MHz DDR (Double Data Rate) memory, FireWire 400 and USB 2.0 ports, and an AirMac Extreme wireless card and SuperDrive optical drive.
The iMac is an all‑in‑one personal computer offered in 15‑inch, 17‑inch wide‑screen, and 20‑inch wide‑screen configurations. It combines a PowerPC G4 processor, DDR memory, and a high‑resolution LCD display with built‑in FireWire, USB, Ethernet, and optional wireless networking.

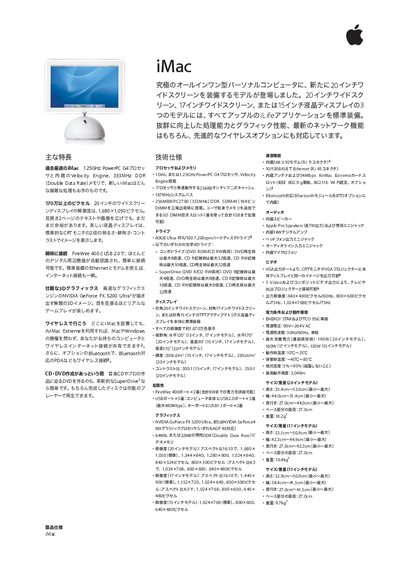

Key features include the NVIDIA GeForce FX 5200 Ultra graphics engine, SuperDrive optical media, AirMac Extreme Wi‑Fi (802.11g/b) with optional Bluetooth, and a range of expansion ports. The leaflet lists detailed technical specifications, power consumption, dimensions, and optional accessories such as Apple Pro Speakers and Bluetooth adapters. This manual is written in Japanese.
| Processor | 1 GHz or 1.25 GHz PowerPC G4 with Velocity Engine |
|---|---|
| Hard Drive | 80 GB Ultra ATA/100 7,200 rpm |
| Optical Drive | SuperDrive (DVD‑R/CD‑RW dual‑format) |
| Display Resolution (20‑inch) | 1,680 × 1,050 pixels (16:10 aspect ratio) |
| Graphics | NVIDIA GeForce FX 5200 Ultra |
| FireWire Ports | 2 × FireWire 400 ports |
| Maximum Power Consumption (20‑inch) | 190 W (continuous use) |
| Weight (20‑inch) | 18.2 kg |
The iMac can be configured with either a 1 GHz or a 1.25 GHz PowerPC G4 processor that includes a Velocity Engine.
The 20‑inch iMac consumes up to 190 W of power during continuous operation.
