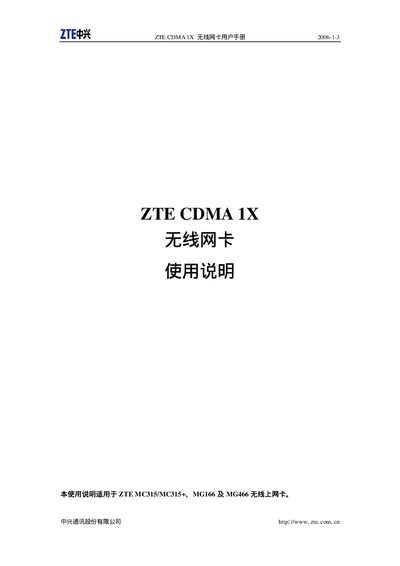

ZTE CDMA 1X Wireless Network Card User Manual, introduces the functions, specifications, precautions, appearance, installation and uninstallation, startup application, connection/disconnection, online records, voice communication, call records, write short messages, read short messages, phone book, settings, software version information, troubleshooting, etc. content.
The ZTE CDMA 1X wireless network card manual provides an overview of the device’s functions, specifications, and physical appearance. It explains the PCMCIA interface, supported operating systems (Windows 98/2000/XP/Me), and the two design options – separate card and integrated card.
Installation steps, driver setup via autosetup.exe, and procedures for inserting or removing the R‑UIM card are detailed, followed by a troubleshooting section with common error messages and solutions. Safety precautions and handling guidelines are also included.
| Transmission band | 824~849 MHz (MC315/MC315+), 452.5~457.5 MHz (MG466), 1850~1910 MHz (MG166) |
|---|---|
| Reception band | 869~894 MHz (MC315/MC315+), 462.5~467.5 MHz (MG466), 1930~1990 MHz (MG166) |
| Frequency stability | FA+ 300 Hz (MC315), FA+ 150 Hz (MC315+) |
| Size | 86 mm × 54 mm × 5 mm |
| Weight | 338 g |
| Maximum data rate | 153.6 kbps |
| Power consumption (sleep) | 90 mA |
| Power consumption (max) | 850 mA |
| Transmit power | 200 mW |
A green LED means the wireless card is powered and operating normally.
