Winmate TPC08-IA8MU1 rugged tablet PC is powered by Intel Atom N270 1.6GHz processor and 945 GSE + ICH7M chipset. It features 8.4-inch SVGA resolution LED panel, supports 1 x SODIMM memory, 4-wire resistive touch screen, 802.11 b/g wireless LAN and Bluetooth.
The TPC08-IA8MU1 is a solid‑type flat computer featuring an 8.4‑inch SVGA LED panel, Intel Atom N270 1.6 GHz processor, and up to 2 GB DDR2 memory. It supports 4‑wire resistive touch, Wi‑Fi, Bluetooth, and a 6‑cell 5200 mAh Li‑ion battery for about 4 hours of operation.

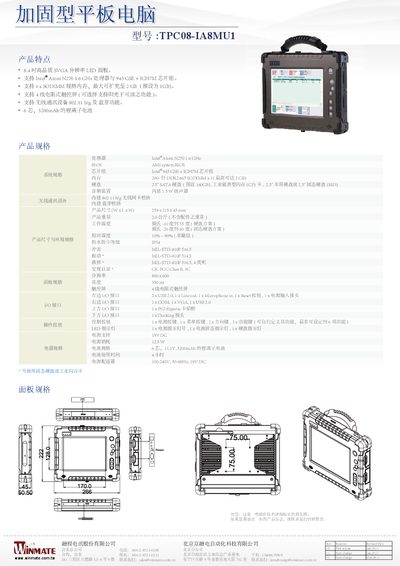

The device offers multiple I/O ports including USB 2.0, VGA, COM, and a docking connector, and meets MIL‑STD‑810F durability standards. It operates in temperatures from –10 °C to 55 °C (HDD) or –20 °C to 60 °C (SSD) and is rated IP54 for water and dust resistance. This manual is written in Chinese.
| Processor | Intel Atom N270 1.6 GHz |
|---|---|
| Memory | 1× DDR2 667 SODIMM, up to 2 GB |
| Dimensions | 259 mm × 215 mm × 45 mm, 2.0 kg |
| Operating Temperature | -10 °C to 55 °C (HDD), -20 °C to 60 °C (SSD) |
It uses an Intel Atom N270 processor running at 1.6 GHz.
It operates from –10 °C to 55 °C with a hard‑disk drive, and from –20 °C to 60 °C with an SSD.
