Winmate TPC12-IA8MM7 rugged tablet PC with 12.1 inch high quality XGA resolution LED panel, support Intel® Atom N270 1.6 GHz processor and 945 GSE + ICH7M chipset, memory max expandable to 2GB, support 4-wire resistive touch screen, built-in 802.11 b/g wireless network card module and Bluetooth module, 6-core, 5200mAh lithium ion battery

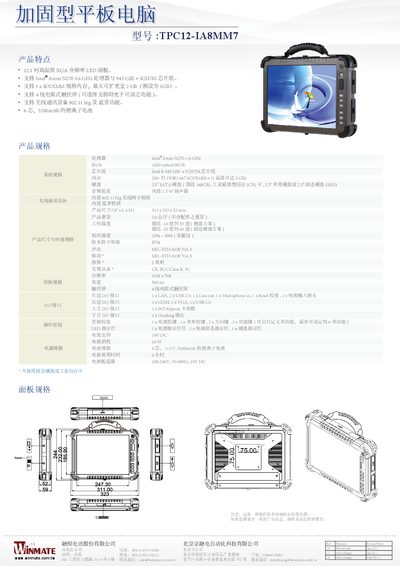

This manual describes the Winmate TPC12-IA8MM7 Plus, a 12.1‑inch rugged flat computer with an XGA LED panel, Intel Atom N270 1.6 GHz processor, and Intel 945 GSE + ICH7M chipset. It supports a single DDR2‑667 SODIMM module up to 2 GB, optional 2.5" SATA HDD (160 GB) or SSD/CF storage, and a 6‑cell 5200 mAh Li‑ion battery.
The device includes built‑in 802.11 b/g Wi‑Fi, Bluetooth, multiple USB, LAN, VGA, and docking interfaces, and meets MIL‑STD‑810F, CE, and FCC Class B certifications. Environmental specifications cover operating temperatures from –10 °C to 55 °C (HDD) or –20 °C to 60 °C (SSD), humidity 10‑90 %, and dimensions of 311 × 232 × 52 mm weighing about 30 kg without accessories. This manual is written in Chinese.
| Display | 12.1‑inch XGA LED panel |
|---|---|
| Processor | Intel Atom N270 1.6 GHz |
| Chipset | Intel 945 GSE + ICH7M |
| Memory | 1 × 200‑pin DDR2‑667 SODIMM, up to 2 GB |
| Storage | 2.5" SATA HDD (160 GB) or SSD/CF options |
| Battery | 6‑cell 5200 mAh Li‑ion |
| Operating Temperature (HDD) | -10 °C to 55 °C |
| Dimensions | 311 × 232 × 52 mm |
| Weight | 30 kg (without accessories) |
| Power Input | 19 V DC, 16 W |
| Wireless | 802.11 b/g Wi‑Fi and Bluetooth |
It uses an Intel Atom N270 processor running at 1.6 GHz.
The device supports up to 2 GB of DDR2‑667 memory via a single SODIMM slot.
It includes built‑in 802.11 b/g Wi‑Fi and a Bluetooth module.
The computer measures 311 × 232 × 52 mm and weighs about 30 kg without accessories.
