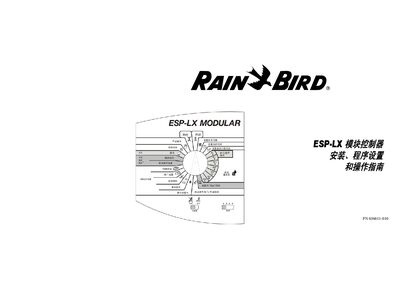

This document is a guide for the installation, program settings, and operation of the ESP-LX module controller. It provides installation requirements and precautions for the controller, as well as instructions and operation guidelines. It also introduces the features and characteristics of the controller.
The ESP-LX controller is designed for both commercial and residential irrigation systems. It includes safety warnings such as the requirement for a circuit breaker or cutoff switch in the fixed wiring and a battery‑backed memory that must be disposed of according to local regulations.
The manual details the controller's hardware layout, programming functions, basic operation, and LED indicators. It also covers FCC compliance, wiring diagrams, and troubleshooting steps to ensure reliable water management. This manual is written in Japanese.
| Number of zones | 8 to 32 |
|---|---|
| FCC compliance | Meets FCC Part 15 requirements |
The controller can manage between 8 and 32 zones.
