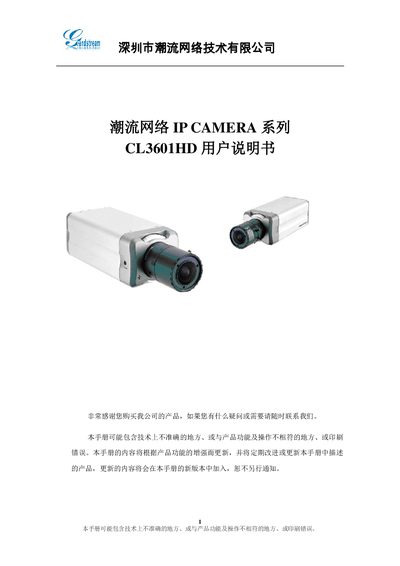

Chaoliu Network CL3601HD IP Camera User Manual

CL3601HD user manual from Chaoliu network, introduces product safety precautions, appearance description, operation instructions, fault troubleshooting and other contents

Brand: Shenzhen市潮流网络
Category: Other
Document type: User Manual
Language: Chinese
Pages: 20
File format: PDF
File size: 980 KB
Updated: 30 September, 2023
MD5 checksum: FBF9BE5AFAEC4E212F77E93A324F4D17
PDF: Chaoliu Network CL3601HD IP Camera User Manual PDF

About this manual

This manual provides safety warnings, power requirements and handling instructions for the CL3601HD IP camera. It includes detailed guidance on installing the device, connecting power and network cables, and preparing the camera for use.

The guide also explains how to log into the camera’s web interface, configure video settings, network parameters, DDNS, SIP, alarm inputs, motion detection, storage options, and system logging. Troubleshooting tips and firmware upgrade procedures are included. This manual is written in Chinese.

What's inside

Safety and Precautions
Product Overview
Appearance and Interface Description
Device Installation
Login and Web Interface
Video and Network Configuration
Alarm and Motion Detection Settings
Storage (USB/SD) and FTP Configuration
System Log and Firmware Upgrade

Specifications

Sensor type	Aptina MT9D131
Effective pixels	1600×1200 (2 MP)
Video format	PAL/NTSC
Maximum resolution	1280×720
Video compression	H.264 / MJPEG
Video bitrate	16–2048 kbps
Operating temperature	-10 °C to +60 °C
Local storage	SD card up to 16 GB, USB/External HDD
Network interface	RJ45 10/100 M Ethernet, RS‑485

Frequently asked questions

Which video compression formats does the camera support?

The camera supports H.264 and MJPEG video compression.

Can the camera be powered over Ethernet (PoE)?

Yes, the device supports PoE power supply.
