HEL-700 Film Platinum Resistance Temperature Sensor is the world's smallest platinum resistor, with wide temperature range, resistance interchangeability, accuracy, linearity, fast and so on. It has chip or lead wire packaging, optional ±0.2% or ±0.1% resistance correction.

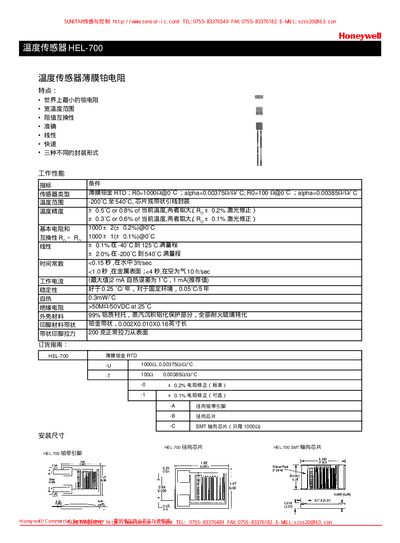

The Honeywell HEL-700 is a thin‑film RTD temperature sensor offering a wide measurement range and high accuracy. The manual provides detailed performance data, calibration formulas, and mechanical dimensions for proper installation.
Key sections include working performance parameters, electrical specifications, calibration procedures, mounting dimensions, and contact information for the manufacturer and distributors. This manual is written in Chinese.
| Temperature range | -200 °C to 540 °C |
|---|---|
| Self‑heating power | 0.3 mW/°C |
The HEL-700 can measure temperatures from –200 °C up to 540 °C.
