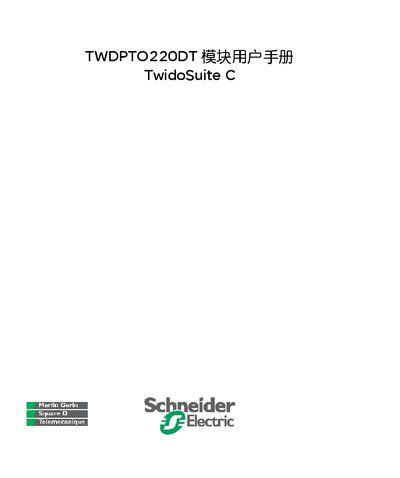

This is the user manual of the TWDPTO220DT module, which introduces the basic knowledge, installation, I/O indicators, PTO parameters, PTO functions, PTO instructions, fault management and other contents of the module. It is suitable for the users of the module.
This manual describes the TWDPTO220DT PTO module, its hardware structure, wiring diagrams, LED indicators, and configuration parameters. It covers safety information, module physical description, and the required PLC and software environments.
The document details command usage, positioning modes, buffer handling, fault management, and key performance specifications such as pulse generation, counter width, and terminal connections. It also includes programming examples and troubleshooting guidance. This manual is written in Chinese.
| High‑frequency pulse clock source | 4 MHz |
|---|---|
| Low‑frequency pulse clock source | 100 kHz |
| Pulse count register width | 32‑bit |
| Terminal block pins | 16‑pin |
| Maximum pulse frequency | 400 kHz |
High‑frequency pulses are generated by an internal 4 MHz counter that can produce output frequencies from 100 Hz up to 400 kHz.
Each PTO channel uses a 32‑bit counter to count the number of output pulses.
