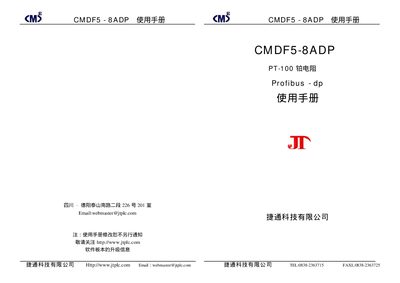

JTPLC technology CMDF5-8ADP PT-100 platinum resistance Profibus - dp Manual

CMDF5-8ADP User Manual is a user manual published by Jietong Technology Co., Ltd. on CMDF5-8ADP. It mainly introduces the main features, parameters, and usage methods of this product.

Brand: JTPLC
Category: Automation control Equipment
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 1.1 MB
Updated: 30 September, 2023
Models: PT-100, CMDF5-8AD
MD5 checksum: 96D445F07F909670C8B6B3BC7BB97C54
PDF: JTPLC technology CMDF5-8ADP PT-100 platinum resistance Profibus - dp Manual PDF

About this manual

The CMDF5‑8ADP is a PROFIBUS‑DP interface module designed for industrial automation. It offers eight isolated PT‑100 temperature‑sensor channels, 12‑bit A/D conversion and supports a wide range of communication speeds.

The manual covers hardware overview, power supply requirements, LED indicators, installation steps, parameter settings, GSD file handling, PROFIBUS‑DP communication configuration and troubleshooting procedures for use with Siemens STEP 7 and other PLC systems. This manual is written in Chinese.

What's inside

Hardware Overview
Power Supply and LED Indicators
Installation and Wiring
Parameter Settings and Configuration
PROFIBUS‑DP Communication
GSD File Installation
Testing and Diagnostics
Error Handling

Specifications

A/D resolution	12 bit
Supported PROFIBUS‑DP speeds	9.6 Kbps to 12 Mbps
Power supply voltage	DC 9 V to 30 V

Frequently asked questions

What power supply voltage is required for the module?

The module operates from a DC supply of 9 V to 30 V.

Which PROFIBUS‑DP communication speeds are supported?

Supported PROFIBUS‑DP speeds range from 9.6 Kbps up to 12 Mbps.

Download PDF (1.1 MB)
