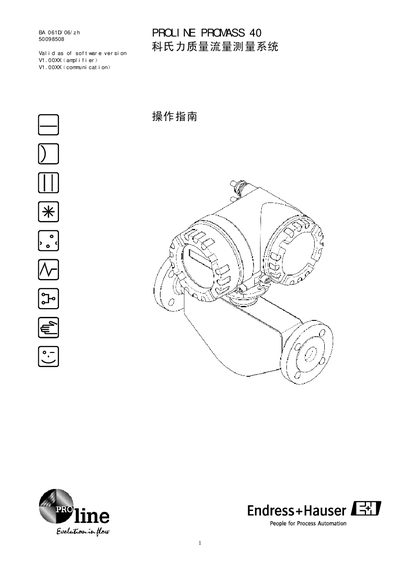

This document is an operating guide for the PROLINE PROMASS 40 Coriolis mass flow measurement system. It provides detailed instructions on installation, wiring, operation, and debugging, and introduces the features and characteristics of the instrument.
The PROLINE PROMASS40 operation guide provides detailed instructions for safe installation, wiring, commissioning, and routine operation of the Coriolis mass flowmeter. It includes safety guidelines, identification data, and step‑by‑step procedures for configuring the instrument and its sensor.
Additional sections cover troubleshooting, maintenance, accessory options, and technical data such as power supply ranges, input/output signals, and compliance with international safety standards. This manual is written in Chinese.
| Power supply voltage (DC) | 16‑62 VDC |
|---|---|
| Power supply voltage (AC) | 20‑55 VAC (50‑60 Hz) |
| Power consumption | 15 VA/W |
| Input/Output signals | I‑OUT (HART), f‑OUT (pulse/frequency), STATUS‑IN, STATUS‑OUT |
| Safety standards compliance | EN61010, EN61326/A1, NAMUR NE21/43 |
It meets the EN61010, EN61326/A1 (EMC) and NAMUR NE21/43 standards for electrical safety and electromagnetic compatibility.
