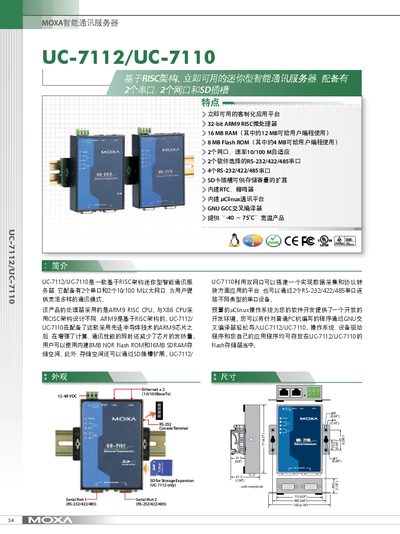

UC-7112/UC-7110 is a mini intelligent communication server based on RISC architecture, with features such as two serial ports, two Ethernet ports, and an SD slot. It uses a 32-bit ARM9 RISC microprocessor with 16 MB RAM and 8 MB Flash ROM for storage. The product provides an immediately available customizable application platform, supporting various communication modes and storage capacity expansion.
The UC-7112 and UC-7110 are ARM9‑based 32‑bit RISC communication servers with two Ethernet ports, multiple serial ports and optional SD storage (UC‑7112 only). They run an embedded uClinux OS and provide services such as Telnet, FTP, SSH and web server.
The document lists hardware details (CPU, memory, power, dimensions), environmental limits, EMC and safety certifications, as well as the included accessories and installation notes. This manual is written in Chinese.
| CPU | ARM9‑based 32‑bit RISC CPU, 166 MHz |
|---|---|
| RAM | 16 MB (12 MB usable) |
| Flash | 8 MB (4 MB usable) |
| Ethernet ports | 2 × 10/100 Mbps RJ45 |
| Serial ports | 2 × RS‑232/422/485 (DB9) |
| Console port | RS‑232 DB9, 3‑wire (TxD, RxD, GND) |
| SD socket | 1 × SD slot (UC‑7112 only) |
| Power input | 12 V–48 V DC |
| Power consumption | 340 mA @12 VDC (4.5 W) |
| Dimensions | 77 mm × 111 mm × 26 mm |
| Weight | 190 g |
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -40 °C to 85 °C |
| ESD protection | 15 kV |
It uses an ARM9‑based 32‑bit RISC CPU running at 166 MHz.
The device includes two 10/100 Mbps RJ45 Ethernet ports.
The unit accepts a DC input voltage from 12 V to 48 V.
It can operate from –10 °C up to 60 °C.
