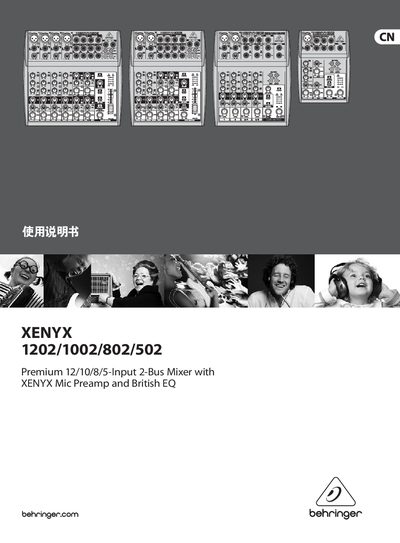

This is a XENYX 1202/1002/802/502 mixer user manual, which mainly introduces the features and characteristics of the mixer, including input and output terminals, operation components and interfaces, installation and other content
This manual introduces the XENYX series mixers, covering safety warnings, warranty terms, and installation instructions. It guides users through power connection, audio cabling, and proper grounding before first use.
The guide then details each channel’s controls, including mic/line inputs, phantom power, EQ sections, FX sends, and routing options. Technical parameters such as frequency response, gain ranges, and power requirements are listed for reference. This manual is written in Chinese.
| Mic input frequency response | <10 Hz – 150 kHz –1 dB |
|---|---|
| Mic input gain range | +10 dB to +60 dB |
| Signal‑to‑noise ratio (mic) | 110 dB / 112 dB A‑weighted |
| Power consumption (1202 model) | 20 W |
| Dimensions (1202 model) | 47 mm × 242 mm × 220 mm |
Installation must be performed by qualified personnel, avoid water or moisture, ensure proper grounding, and follow all safety warnings listed in the manual.
Use the BEHRINGER PSU MX3EU adapter (230 V AC, 50 Hz) supplied with the unit.
