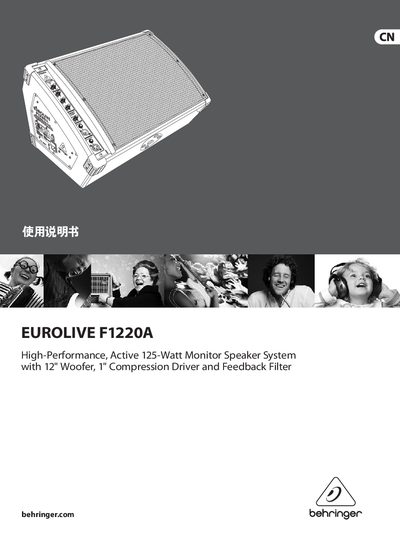

This manual covers the EUROLIVE F1220A 125‑W active monitor speaker system, describing its components, connections, and safety precautions. It explains how to power the unit, adjust the three‑band equalizer, use the feedback filter, and link multiple speakers together.
Technical data such as output power, frequency response, SPL, input sensitivity and impedance, as well as warranty and registration information are provided for users and service technicians. This manual is written in Chinese.
| Output Power (RMS @ 1% THD) | 90 W / 8 Ω |
|---|---|
| Peak Power | 125 W / 8 Ω |
| Frequency Response | 60 Hz – 18 kHz (-10 dB) |
| Maximum SPL | 121 dB @ 1 m |
| Input Sensitivity | -50 dBu to +10 dBu |
| Input Impedance (Balanced) | 11 kΩ |
| Input Impedance (Unbalanced) | 30 kΩ |
| Feedback Filter Frequency Range | 300 Hz – 6 kHz |
| Power Consumption (max) | 180 W |
Use the LINK output of the first speaker and connect it to the LINE input of the next speaker.
The CLIP LED lights when the input signal is overloaded; reduce the LEVEL knob until the LED stops flashing.
