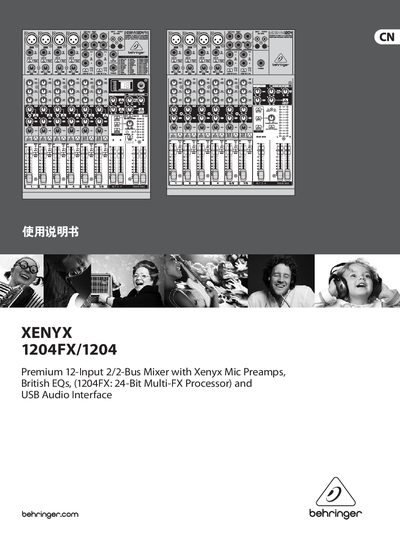

This is a summary of the XENYX 1204FX/1204 user manual. This manual introduces the features and characteristics of the product, including the function, operation elements and interfaces, digital effects processors and surround sound functions, installation, etc.
This manual introduces the XENYX 1204FX/1204 premium 12‑input mixer, covering safety notices, warranty terms, and an overview of all controls, inputs, and outputs. It explains the mic preamps, British EQs, digital effects processor, and USB audio interface, guiding users through proper setup and operation.
Installation instructions cover power connection, cable routing, and rack‑mounting, while the technical parameters section lists detailed specifications such as input types, frequency response, gain range, and power requirements. The document also includes troubleshooting tips and warranty information. This manual is written in Chinese.
| Mic input type | XLR, balanced |
|---|---|
| Frequency response (mic) | <10 Hz – 150 kHz (-1 dB) |
| Gain range (mic) | +10 dB to +60 dB |
| Maximum input level (mic) | +12 dBu @ +10 dB gain |
| Signal‑to‑noise ratio (mic) | 110 dB A‑weighted |
| Dimensions (1204FX) | ≈ 3 7/8" × 9 11/16" × 13 5/32" (97 × 247 × 334 mm) |
| Weight (1204FX) | ≈ 2.60 kg |
