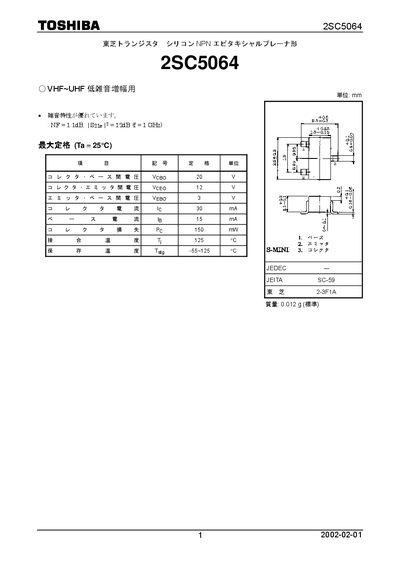

The 2SC5064 is a silicon NPN epitaxial planar transistor designed for VHF/UHF low‑noise amplification. It is intended for use in general electronic equipment such as computers, measurement devices and industrial robots.
The document lists maximum ratings, electrical characteristics, microwave performance, S‑parameter data and handling guidelines. It also includes safety notices that the device is not guaranteed for critical applications such as aerospace, nuclear control or medical equipment. This manual is written in Japanese.
| Collector‑Base Voltage (VcBo) | 20 V |
|---|---|
| Collector‑Emitter Voltage (VcEo) | 12 V |
| Emitter‑Base Voltage (VEBo) | 3 V |
| Transition Frequency (fT) | 500 MHz |
| S‑Parameter Reference Impedance | 50 Ω |
The maximum collector‑base voltage is 20 V.
The transition frequency is specified as 500 MHz.
