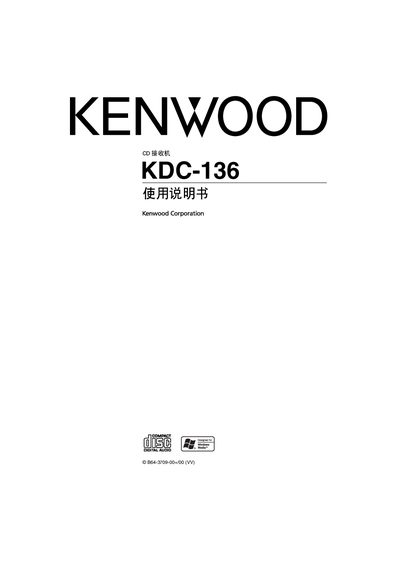

This document is the user manual for the CD receiver KDC-136, which describes the overall features of the product, safety precautions, audio source selection, sound control, clock display, and other functions.
This manual provides safety precautions, installation instructions, and wiring guidelines for the Kenwood KDC-136 CD receiver. It emphasizes proper grounding, avoiding metal objects inside the unit, and recommends professional installation for reliable operation.
The guide details audio control functions, speaker settings, bass boost, anti‑theft panel handling, phone mute features, and tuning procedures. It also lists the device’s electrical and audio specifications, such as frequency ranges, output power, and dimensions. This manual is written in Chinese.
| FM frequency range | 87.5 MHz – 108.0 MHz |
|---|---|
| AM frequency range | 531 kHz – 1611 kHz |
| Laser diode type (CD playback) | GaAlAs |
| CD playback frequency response | 10 Hz – 20 kHz |
| Dimensions (W×H×D) | 182 mm × 53 mm × 155 mm |
Press the reset button; the unit will return to its initial state.
