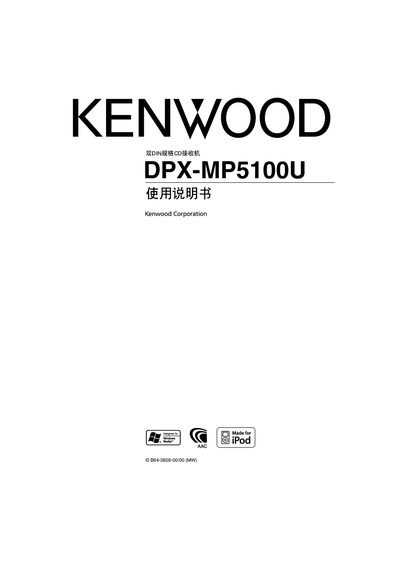

This document is a user manual for the double DIN standard CD receiver DPX-MP5100U, which introduces the safety precautions, overall characteristics, power supply, audio control, tuner/TV control functions, control features of CD/USB devices/audio files/external discs, and menu system of the product.
This guide begins with safety precautions such as keeping metal objects out of the unit, grounding the 12 V power source, and avoiding installation in high‑temperature or high‑humidity environments. It also warns against applying excessive force to the panel and using incompatible accessories.
The manual then details the installation procedure, including mounting dimensions (178 × 100 × 155 mm), weight (1.60 kg), and wiring for power, USB/iPod, CD, AUX, and TV inputs. It describes audio controls, supported file formats (AAC‑LC, MP3, WMA, WAV, CD‑R, CD‑RW), and provides technical specifications such as output power, frequency response, and USB standards. This manual is written in Chinese.
| Frequency Range | 20 Hz – 20 kHz |
|---|---|
| Input Impedance | 600 Ω |
| USB Standard | USB 2.0 |
| Dimensions (W × H × D) | 178 × 100 × 155 mm |
| Weight | 1.60 kg |
Remove metal objects from the unit, ensure a grounded 12 V power source, avoid installing in hot, humid or dusty locations, and do not apply excessive force to the panel.
The unit supports AAC‑LC (m4a), MP3, WMA, WAV, as well as CD‑R and CD‑RW discs.
