The VGN-CS series is a laptop computer that features an Intel® Core™ 2 Duo processor, a 320GB hard drive, 3GB of DDR2 memory, and a 14.1-inch WXGA screen.

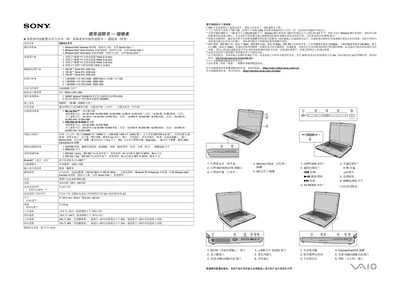

This manual covers the hardware specifications of the Sony VAIO VGN‑CS series, including processor options, memory, storage, display, graphics, and battery details. It also lists supported operating systems such as Windows Vista Business, Home Premium, Home Basic, and Windows XP Professional.
The document describes the connectivity options (Wi‑Fi, Bluetooth, Ethernet, USB ports), physical dimensions, weight, and the functions of various buttons and ports on the notebook. Safety warnings and usage notes for high‑altitude operation and battery performance are also included. This manual is written in Chinese.
| Processor options | Intel Core 2 Duo T9400 (2.53 GHz) |
|---|---|
| Hard drive options | 320 GB Serial ATA, 5400 rpm |
| Memory options | 3 GB DDR2 (PC2‑6400, DDR2‑800) |
| Display | 14.1" WXGA (1280 × 800) |
| Graphics | NVIDIA GeForce 9300M OG |
| Battery voltage | 19.5 V DC |
| Dimensions (W × D × H) | 335.8 mm × 229 mm × 39.8 mm |
| Weight | ≈2.6 kg |
