This manual introduces the maintenance content of Acer AL1702W display, including disassembly steps and troubleshooting.

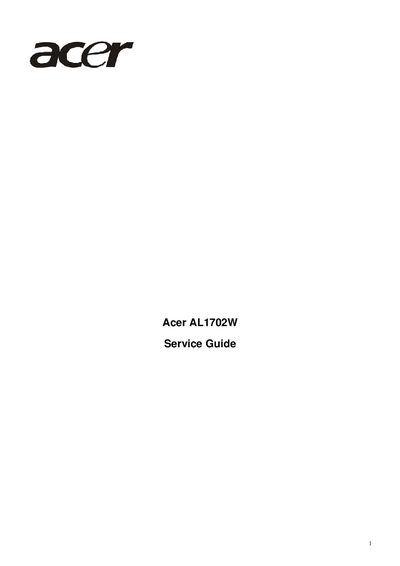

The Acer AL1702W Service Guide provides detailed technical information for service technicians, including monitor features, electrical requirements, and component diagrams. It covers safety precautions, FCC compliance, and ENERGY STAR compliance for the 17‑inch microprocessor‑based LCD monitor.
The manual includes sections on operating instructions, troubleshooting, connector information, FRU (Field Replacement Unit) lists, exploded diagrams, and schematic diagrams, helping technicians diagnose and repair the monitor efficiently.
| Screen size | 17 inches |
|---|---|
| Display resolution | 1440 x 900 @ 60 Hz |
| Video interface | 15‑pin D‑sub VGA connector |
| Power input | 230 V ± 5 % |
| Operating temperature | 20 °C ± 5 °C |
| Built‑in audio | Stereo audio amplifier, no headphone jack |
| MTBF target | ≥ 50 000 hours |
| Power plug | Three‑pronged grounded plug |
Do not open the cabinet; refer all servicing to qualified personnel because dangerous high voltages are present inside the monitor.
The monitor uses a three‑pronged grounded plug that fits only into a grounded power outlet.
It supports a display mode of 1440 × 900 pixels at 60 Hz.
