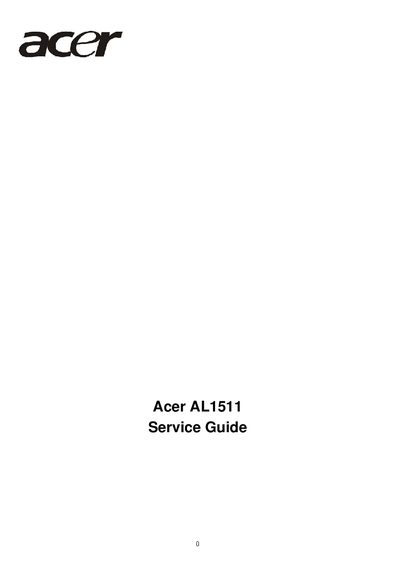

Acer AL1511 Monitor Service Manual

About this manual

This service guide covers the Acer AL1511 15‑inch LCD monitor, detailing its features, technical specifications, and safety requirements. It is intended for qualified service personnel and includes warnings, handling instructions, and compliance information.

The manual is organized into sections on monitor features, operating instructions, machine disassembly, troubleshooting, connector details, FRU part lists, and schematic diagrams, providing a complete reference for repair and maintenance tasks.

What's inside

• Monitor Features
• Operating Instructions
• Machine Disassembly
• Troubleshooting
• Connector Information
• FRU (Field Replacement Unit) List
• Schematic Diagram

Specifications

Frequently asked questions

What should I do if the screen flickers during initial use?

Turn the Power Switch off and then on again to eliminate the flicker.

What safety precautions are required when handling the monitor?

Do not expose the monitor to rain or moisture, and always use the grounded three‑prong plug.

What is the maximum power consumption of the AL1511 monitor?

The monitor consumes up to 30 W at maximum power.
