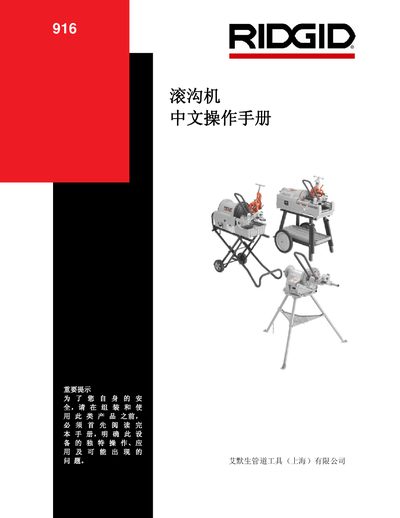

916 groover operation manual, this manual introduces the characteristics of 916 groover, safety precautions, product overview, technical parameters and standard configuration, groover assembly, groover pre-check, groover and work site setting, 916 groover operation guide, disassemble/install groover wheel set, use 916 to groove copper pipe, maintenance guidance, lubrication, machine storage, repair and service
This manual explains the safety precautions and required personal protective equipment before using the RIDGID 916 rolling groove machine. It covers workplace safety, electrical safety, and proper handling of the equipment.
The document details assembly options for various power‑driven units, pre‑use inspections, operating instructions, adjustment of rolling depth, maintenance procedures, technical specifications, and a troubleshooting guide to resolve common issues. This manual is written in Chinese.
| Weight | 33 lbs |
|---|---|
| Compatible Power Sources | 300动力驱动设备, 300C套丝机, 535M, 535A, 1822‑I套丝机 |
| Supported Pipe Sizes | 1¼"‑6" (10‑ga), 1¼"‑3" (40‑ga), 2"‑6" copper (K, L, M, DWV), 1" (10‑ga & 40‑ga) |
| Maximum Operating Speed | < 58 RPM |
Keep the work area clean, well‑lit, and free of flammable materials; follow all personal protective equipment guidelines and read the safety instructions.
It can roll 1¼"‑6" (10‑ga), 1¼"‑3" (40‑ga), 2"‑6" copper (K, L, M, DWV), and 1" (10‑ga & 40‑ga) pipes.
The 916 can be mounted on RIDGID 300 power‑driven units, 300C threading machines, 535M, 535A, and 1822‑I threading machines.
The machine must be operated at a speed lower than 58 RPM.
