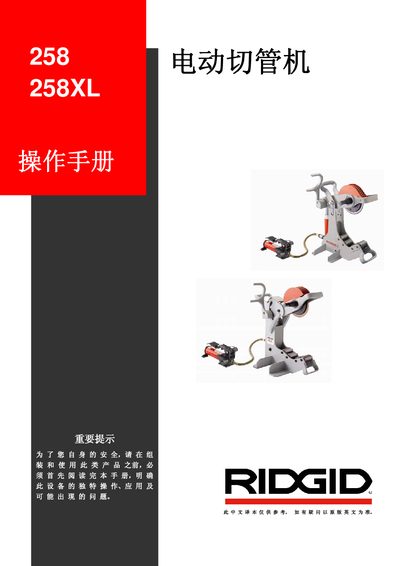

This document introduces the features and characteristics of the RIDGID258 and 258XL power pipe cutters. The pipe cutters can cut 2-1/2” - 8” or 8” - 12” pipes.
This manual covers essential safety precautions, proper setup, and operation of the RIDGID 258/258X electric cut tube machine. It explains how to install the 700 power drive unit, adjust the pivot arm, and use the cutting wheel for pipe sizes ranging from 2‑1/2" to 12".
Additional sections describe routine maintenance, wheel replacement, transportation, and a detailed troubleshooting guide to help resolve common issues such as hydraulic pump problems or cutting wheel tracking failures. This manual is written in Chinese.
| Cutting capacity | 2‑1/2"‑8" and 8"‑12" |
|---|---|
| Width (B) | 13" / 11" |
| Thickness (C) | 19" / 24" |
| Weight (without 700PD) | 95 lb |
The machine can cut pipe diameters from 2‑1/2" up to 8" on the 258 model and from 8" up to 12" on the 258XL model.
