This manual introduces the use of hydraulic punching machines, safety regulations, product overview, specifications and standard configurations, etc.

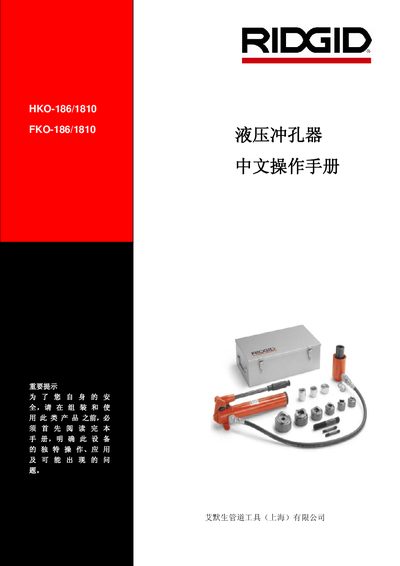

This manual provides an overview of the RIDGID hydraulic punching implements, including model numbers HKO-186/1810 and FKO-186/1810, their intended use, and key technical data. It also lists the accessories and parts that accompany each model.
The document details safety precautions, step‑by‑step operating instructions, technical specifications such as capacity, stroke, oil volume and maximum pressure, and warranty terms. It is written in Chinese for use in China and references RIDGID’s local service network.
| Capacity | 11.2 Tons |
|---|---|
| Stroke | -1 Inch |
| Oil volume | 2.45 cu. in. |
| Weight (with oil) | 5.3 lbs |
| Maximum pressure | 10,000 PSI |
| Oil capacity | 18.6 cu.in |
| Weight (without oil) | 7.5 lbs |
Keep the work area clean and well‑lit, stay sober, wear appropriate work clothing and safety gear, maintain balance, keep the tool clean, and inspect it for damage before use.
The maximum pressure is 10,000 PSI.
The oil capacity is 18.6 cu.in.
