5GWJZ47 is a Schottky diode produced by Toshiba. Its maximum reverse peak voltage is 40V, maximum average forward current is 5A, reverse recovery time is 35ns, and forward voltage is 0.55V.
The Toshiba 5GWJZ47 is a Schottky barrier diode designed for low forward voltage and fast reverse recovery. It provides a peak repetitive reverse voltage of 40 V, an average forward current of 5 A, and a forward voltage of 0.55 V at that current.

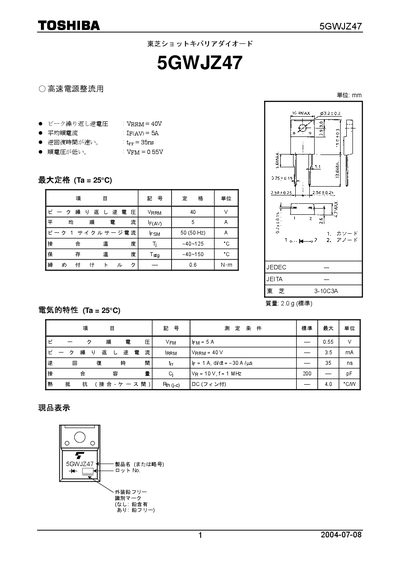

The datasheet includes electrical characteristics, maximum ratings, package dimensions, and safety precautions. Users are advised to consider thermal design, margin for voltage and temperature, and to consult Toshiba's semiconductor handling guidelines for reliable operation. This manual is written in Japanese.
| Peak Repetitive Reverse Voltage (VRRM) | 40 V |
|---|---|
| Average Forward Current (I_F(AV)) | 5 A |
| Forward Voltage (V_F) at 5 A | 0.55 V |
| Reverse Recovery Time (tr) | 85 ns |
| Junction Temperature Range | -40 °C to 125 °C |
| Mass | 2.0 g |
The diode’s peak repetitive reverse voltage is 40 V.
The maximum average forward current is 5 A.
At 5 A, the forward voltage is 0.55 V.
The recommended maximum junction temperature is 125 °C.
