TLRE16T,TLRME16T,TLSE16T,TLOE16T,TLYE16T are a series of LED lamps produced by Toshiba. They are 5mm in diameter and come in three colors: red, orange and yellow. They are high-brightness and low-power, and can be used in various information display boards, security devices, and backlighting applications.
The TLRE/TLRME/TLSE/TLOE/TLYE 16T series are high‑brightness InGaAP LED lamps offered in red, amber and yellow colors for use in information display panels, safety equipment and back‑light applications. They feature a transparent resin‑molded lens, fast response pulse operation, and low power consumption.

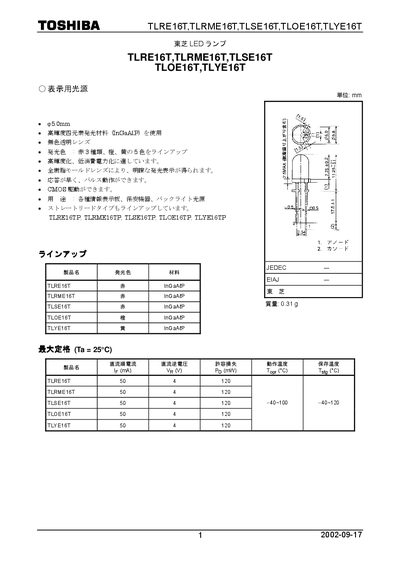

The datasheet provides forward voltage and current ratings, power loss, wavelength and luminous intensity curves, as well as mechanical dimensions and recommended soldering procedures. Safety notices cover handling of GaAs material and usage restrictions for critical applications. This manual is written in Japanese.
| Forward current (IF) | 50 mA |
|---|---|
| Reverse voltage (VR) | 4 V |
| Power loss (P) | 120 mW |
| Recommended soldering temperature | 260 °C |
The maximum forward current is 50 mA.
The recommended soldering temperature is 260 °C.
