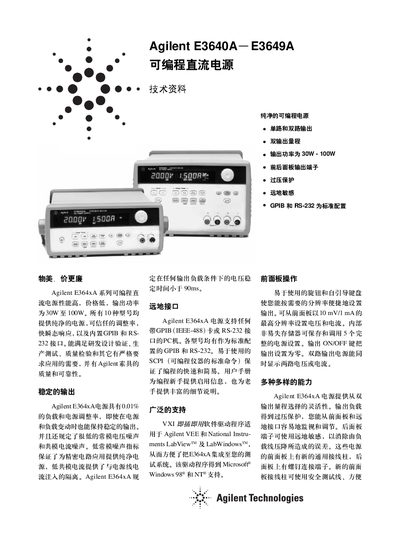

The Agilent E364xA series programmable DC power supply has high performance and low price, with output power ranging from 30W to 100W. It features stable output, remote interface, front panel operation, and various capabilities.
The Agilent E3640A‑E3649A series are programmable DC power supplies offering precise output (0.01% accuracy) with low noise and fast response (<90 ms). They provide GPIB (IEEE‑488) and RS‑232 interfaces and support SCPI commands for easy integration with PC‑based test systems.
The devices cover single‑ and dual‑output configurations with power ratings from 30 W up to 100 W, voltage ranges up to 20 V, and current capabilities up to 8 A. Mechanical specifications include a compact size (254.4 mm W × 103.6 mm H × 374 mm D) and weight around 5.33 kg, with built‑in protections such as OVP and ground‑sensitivity of 1 V. This manual is written in Chinese.
| Maximum output power | 100 W |
|---|---|
| Output voltage range | 0‑20 V |
| Noise (common‑mode) | <5 mVpp/0.5 mVrms |
| Dimensions (W × H × D) | 254.4 mm × 103.6 mm × 374 mm |
| Weight | 5.33 kg |
| Temperature coefficient | + (‑0.01 % + 3 mV)/°C |
| Ground sensitivity | 1 V |
Dual‑output models can deliver up to 100 W of power.
The E3640A measures 254.4 mm wide, 103.6 mm high, and 374 mm deep.
