TCD1500C is a line array CCD image sensor with high sensitivity, low dark current, and 5340 pixels, released by Toshiba in October 1995. The sensor can be used for fax, image scanning, and OCR. It features high sensitivity and high precision.
The TCD1500C is a high‑sensitivity, low‑dark‑current CCD image sensor with 5340 pixels. It is suitable for document scanning, OCR, and other imaging applications, offering resolutions up to 400 dpi for A3 size and 600 dpi for A4 size.

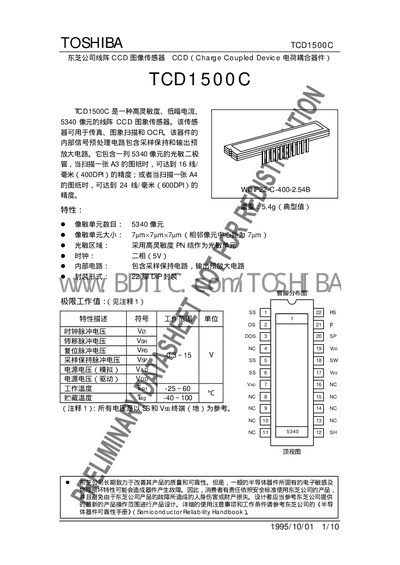

The document lists electrical and optical parameters, operating temperature range, supply voltages, typical frame rates, and mechanical dimensions, along with typical application circuits and handling precautions. This manual is written in Chinese.
| Pixel count | 5340 |
|---|---|
| Pixel size | 7 µm × 7 µm |
| Supply voltage (VDD) | 12 V |
| Operating temperature range | -25 °C to 60 °C |
| Typical sensitivity (R) | 4.8 (typical) |
| Frame rate (fps) | 1.0 – 8.0 fps |
The sensor contains 5340 pixels.
The typical supply voltage (VDD) is 12 V.
It can operate from –25 °C up to 60 °C.
Typical frame rates range from 1.0 to 8.0 fps.
