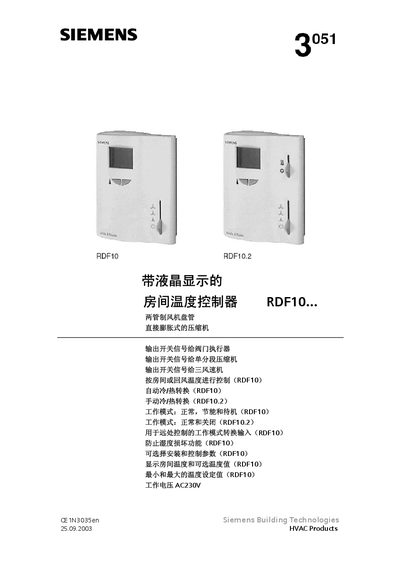

RDF10 room temperature controller has a liquid crystal display, output switch signal to valve actuator, output switch signal to single-phase compressor, output switch signal to three-speed fan, can be automatic cold/hot conversion, manual cold/hot conversion, normal, energy saving and standby working mode, has anti-humidity damage function, optional installation and control parameters, display room temperature and optional temperature value, minimum and maximum temperature setting value and other features.
The RDF10 is a room temperature controller with an LCD display designed for two‑pipe fan coil units. It supports automatic heating/cooling conversion, manual mode switching, and optional fan speed control. The controller can drive valve actuators or compressors and includes protection against humidity damage.
The manual provides detailed instructions for installation, DIP‑switch configuration, parameter adjustment, wiring diagrams, and technical specifications such as voltage, power consumption, temperature range and accuracy. It also lists optional accessories and certification information.
| Working voltage | AC230V |
|---|---|
| Maximum power consumption | 6 VA |
| Temperature setting range | 5 °C – 35 °C |
| Control accuracy | ± 5 K |
The heating conversion error is 2 K and the cooling conversion error is 1 K (adjustable for RDF10, fixed for RDF10.2).
