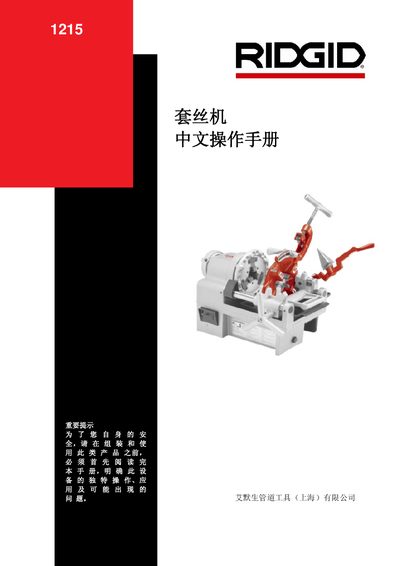

1215 tap machine Chinese manual, introduces the machine's safety precautions, product overview, machine installation, tapping operations, maintenance guidance, 1219 short pipe tool use and other contents
This manual covers comprehensive safety instructions for the RIDGID 1215 tapping machine, including workplace, electrical, and personal safety, as well as specific precautions for the foot switch and tapping operations. It also details the required protective equipment and safe work practices to prevent electric shock, fire, and injury.
Installation, inspection, and setup procedures are described step‑by‑step, followed by detailed operating instructions for pipe tapping, cutting, and tool changes. Maintenance guidance includes oil‑system care, clamp and motor‑brush replacement, and storage requirements, plus warranty and service information. This manual is written in Chinese.
| Tapping capacity (pipe) | 1/4" – 11/2" |
|---|---|
| Motor power | 1500W |
| Voltage | 120V AC 50‑60Hz |
| Current | 14 A |
| Speed | 44 RPM |
| Weight (machine) | 69 lbs |
Read all safety notices, keep the work area clean and well‑lit, avoid flammable environments, use grounded outlets, wear protective eyewear and safety shoes, and never operate without a functional foot switch.
The machine operates on 120 V single‑phase AC at 50‑60 Hz and draws about 14 A, with a motor power rating of 1500 W.
Motor brushes should be checked every six months and replaced when worn to about 1/2 inch.
The machine weighs approximately 69 lbs.
