The Philips PicoPix Portable Pocket Projector 20 lumen PPX1020 is a portable device that allows you to share your photos, videos and documents at home or on the go. It features SVGA resolution (800x600), up to 203 cm (80 inches) image size projection and USB power supply.
The Philips PPX1020 Pocket Projector is a compact, USB‑powered device that can project images up to 203 cm (80 inches) in size with SVGA (800×600) resolution. It uses a 20‑lumens RGB LED light source and offers manual focus, a 500:1 contrast ratio, and a wide range of supported video formats.

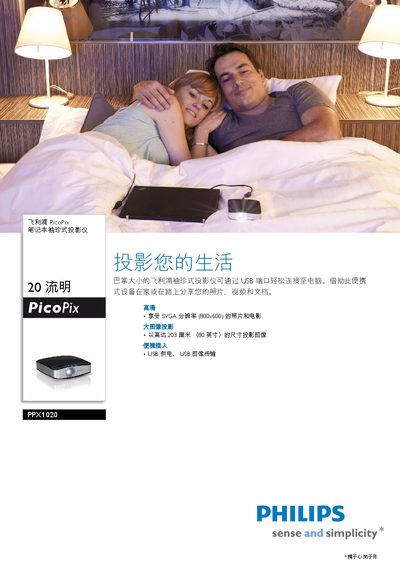

The manual explains how to connect the projector via its mini‑USB 2.0 power and video cable, outlines recommended PC configurations for optimal performance, lists all technical specifications, and includes information on accessories, safety, and warranty. This manual is written in Chinese.
| Brightness | 20 lumens |
|---|---|
| Contrast Ratio | 500:1 |
| Display Technology | VueG8* LCoS |
| LED Light Source | RGB LED |
| Native Resolution | 800 × 600 pixels |
| Projection Distance | 0.2 m – 3.0 m |
| Maximum Image Size | 203 cm (80 inches) diagonal |
| Supported Resolutions | WXGA 1280×768, XGA 1024×768, SVGA 800×600 (60 Hz) |
| Dimensions (with packaging) | 164 × 147 × 66 mm |
| Weight (with packaging) | 0.387 kg |
| Operating Temperature | 5 °C – 40 °C |
| Storage Temperature (packed) | -25 °C – 60 °C |
| Supported Operating Systems | Windows XP, Vista, 7 (32‑ and 64‑bit) |
The projector is powered via its mini‑USB 2.0 power cable connected to a USB port.
It can project images up to 203 cm (80 inches) in diagonal size.
The projector works with Windows XP, Windows Vista, and Windows 7, both 32‑ and 64‑bit versions.
