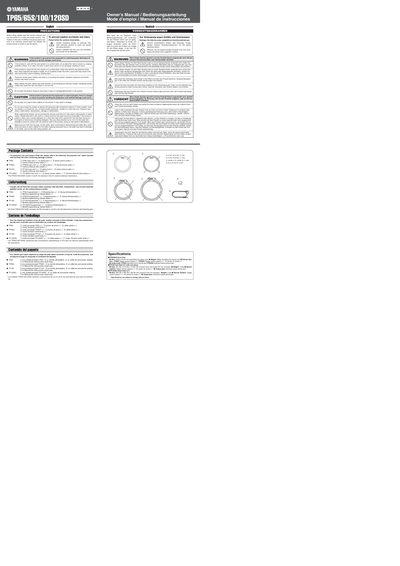

This manual begins with safety precautions, warning users to keep the rack on a stable surface, tighten all bolts, keep children away, avoid high temperatures, and never modify the product. It also explains proper cleaning, cable handling, and storage to prevent injury or damage.
The second part lists the package contents, detailed specifications for each pad model (size, weight, sensor system, output jack) and provides a Pad‑to‑Input matching chart that shows how each pad should be connected to DTX drum‑trigger modules, including the required stereo phone cable for TP65S, TP100 and TP120SD.
| TP65 Weight | 980 g (including clamp bolt) |
|---|---|
| TP65 Sensor System | Trigger sensor (piezo) x1, rim switch (2 zones) |
| TP100 Size | 297 x 313 x 74 mm (control knob and clamp bolt not included) |
| TP100 Weight | 2.2 kg |
| TP100 Sensor System | Trigger sensor (piezo) x1, rim switch (2 zones) |
| TP100 Output Jack | Standard stereo phone jack |
| TP120SD Size | 349 x 364 x 69 mm (control knob not included) |
| TP120SD Weight | 2.5 kg |
| TP120SD Sensor System | Trigger sensor (piezo) x1, rim switch (2 zones) |
| TP120SD Output Jack | Standard stereo phone jack |
Do not place the rack or stand on a sloping, unstable surface, keep all bolts tightly fastened, keep children away, avoid high temperature or humidity, and never modify the product.
A stereo phone cable must be used; a mono cable will not produce the rim‑switch voices.
The TP100 measures 297 mm W × 313 mm D × 74 mm H (control knob and clamp bolt not included) and weighs 2.2 kg.
